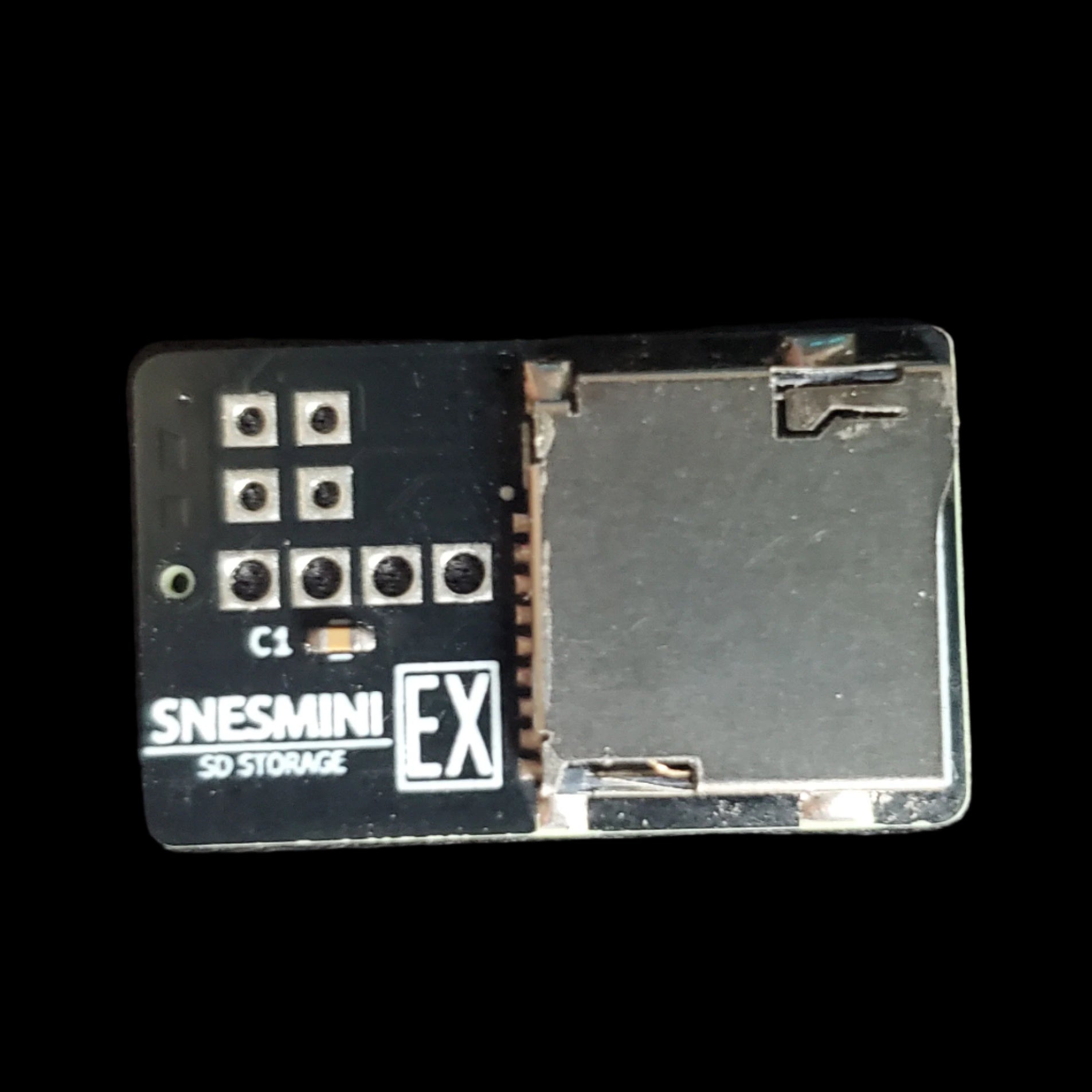

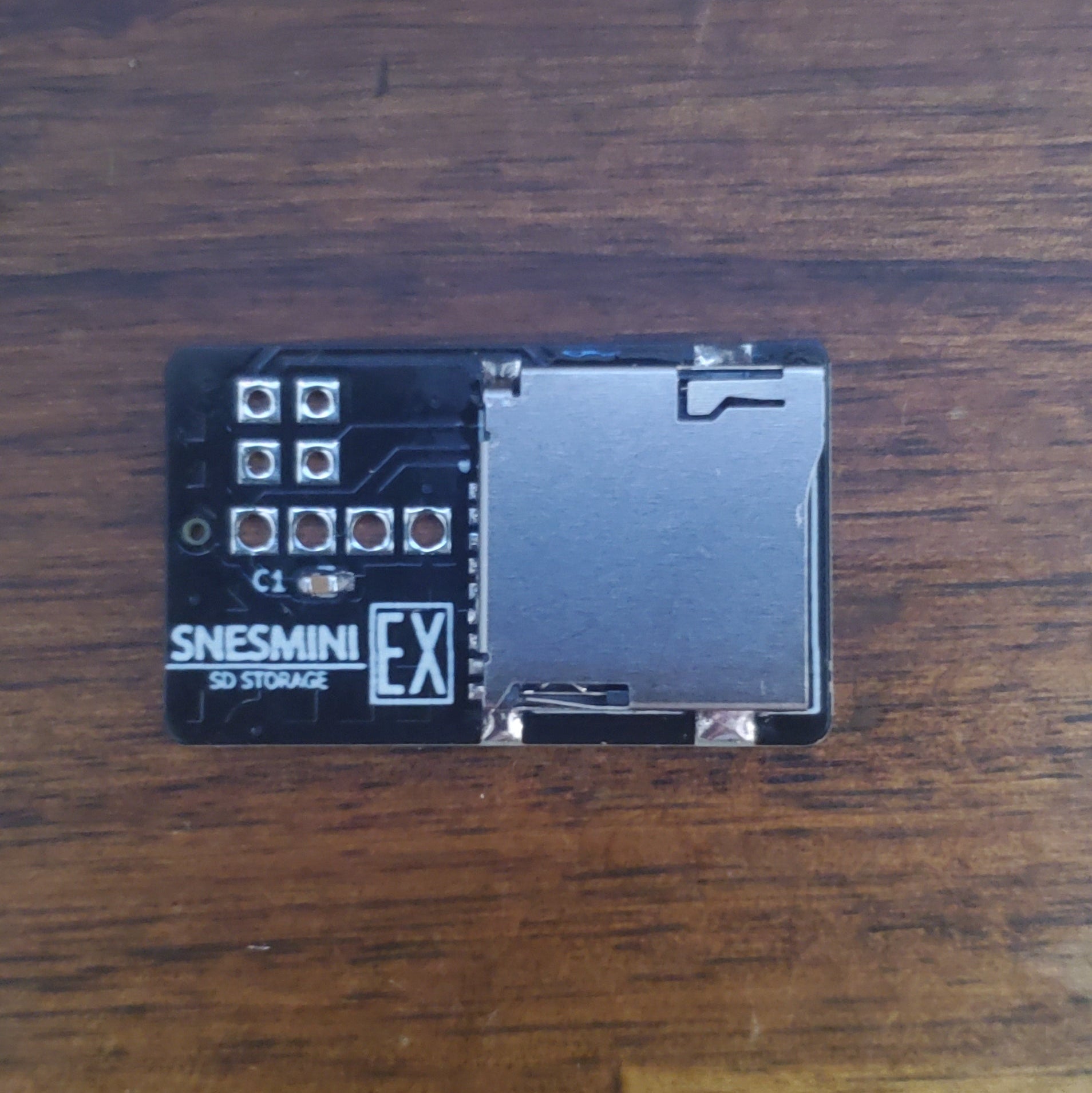

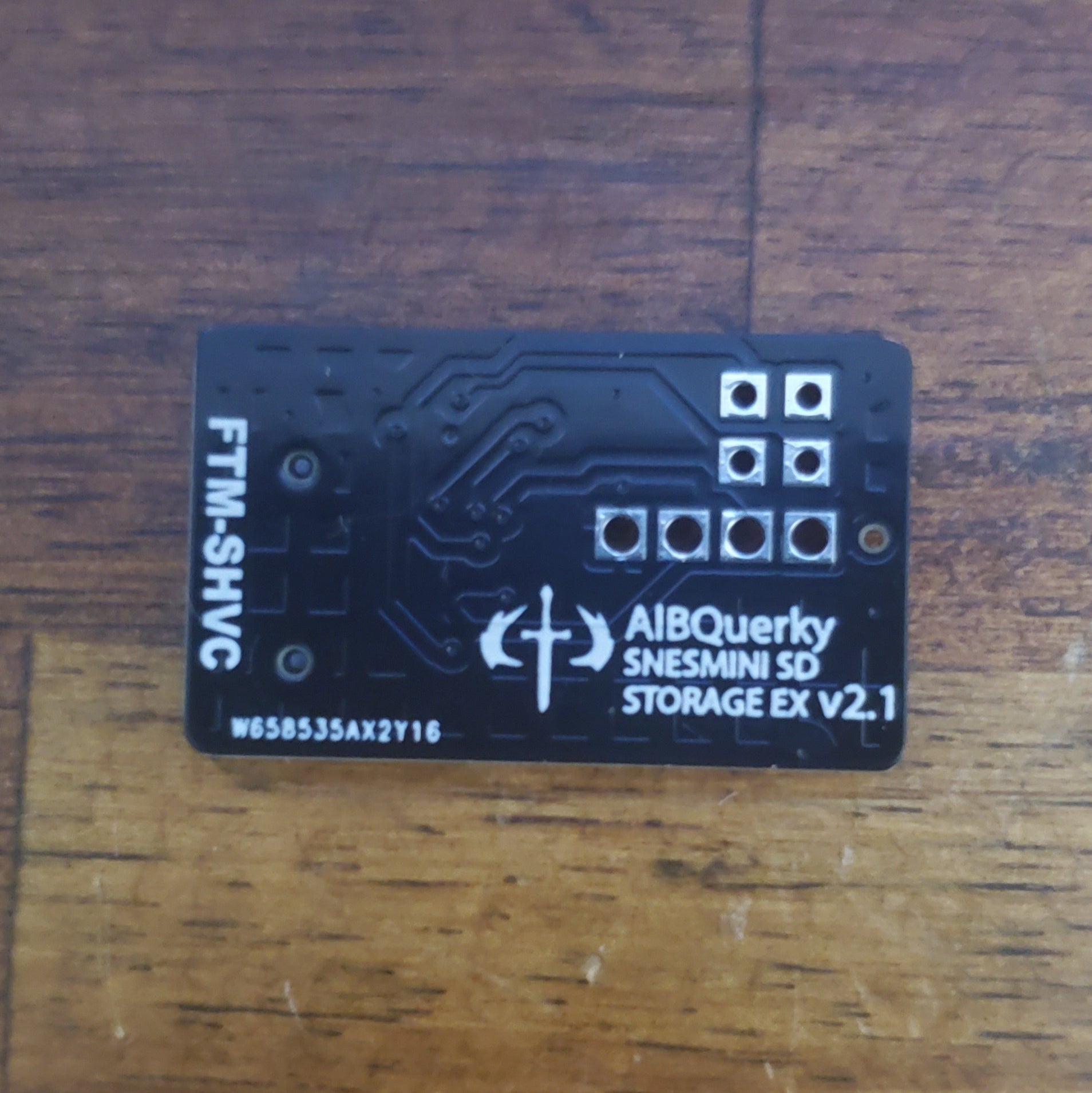

SNES MINI SD STORAGE EX - Internal Storage Mod Expander PCB For FTM-SHVC boards.

This board, when soldered onto the mini's motherboard, allows for an Micro SD card to be used as extra storage to be used with the program Hakchi2 CE.

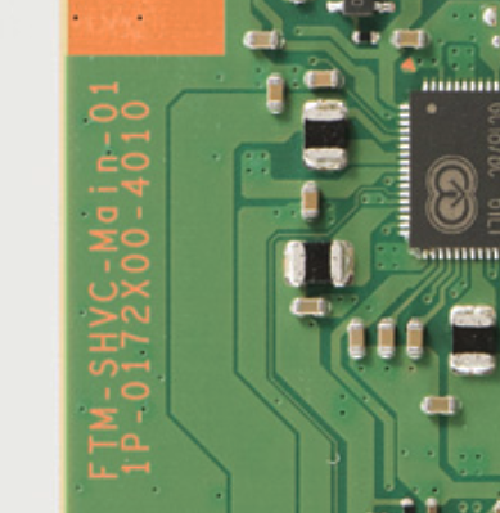

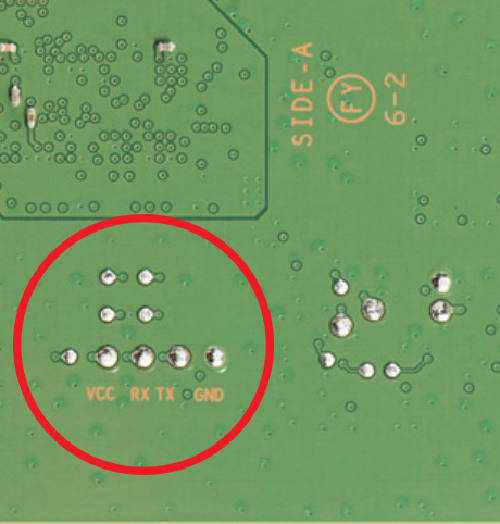

Soldering Intructions: (FTM-SHVC has the soldering points on the bottom side of the board.)

1. - Align the pcb board to the soldering points on the board. Each hole should align to each point that needs to be soldered.

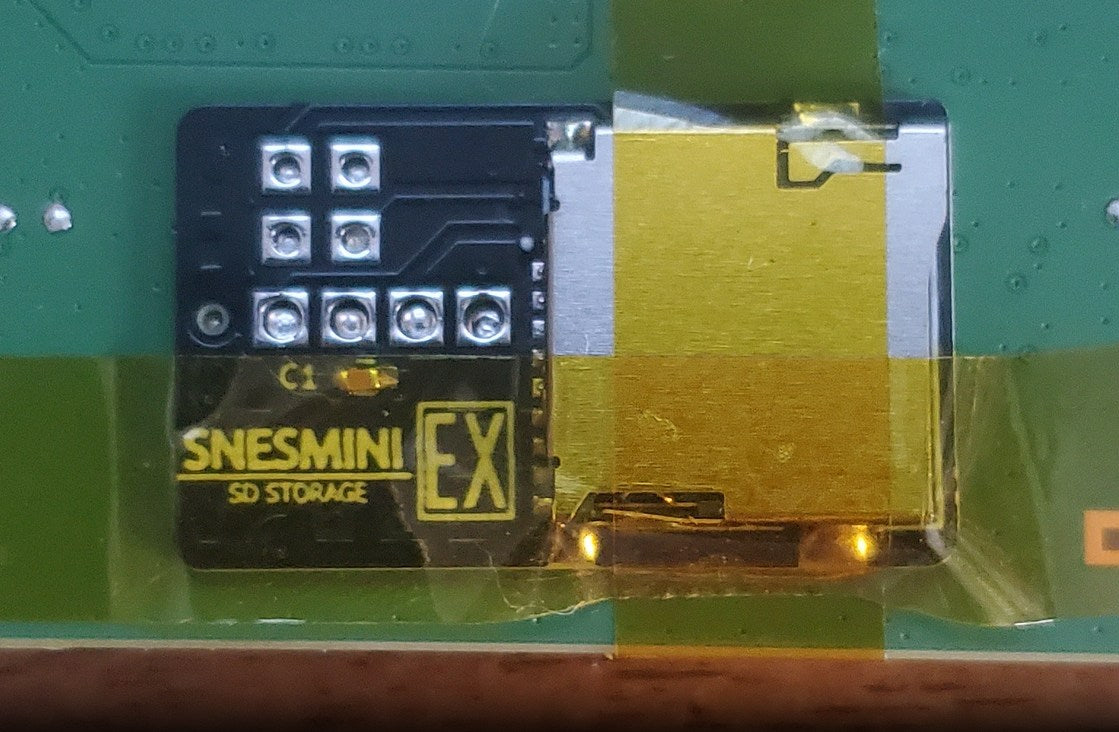

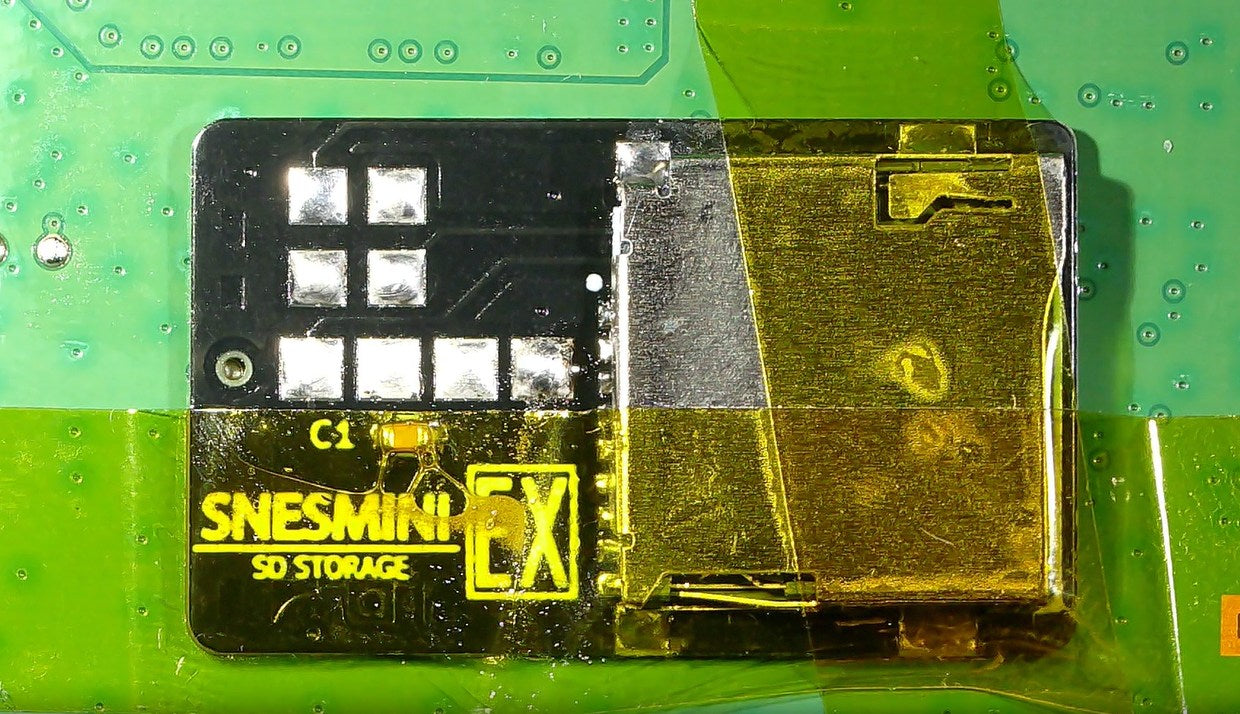

2. - Secure the board with kapton tape so it does not move. You can apply a bit of flux to each hole at this point.
3. - Solder in the larger holes first by filling them in and making sure they get properly heated.
4. - Fill in the remaining smaller holes while making sure they properly adhere. Once finished, double check your work. Take your time. I recommend you go over each point again. Let the iron sit on each hole so that it allows the solder to bond with the board.
5. - Insert a microsd card of your choice (Listing image shows a 128GB MicroSD Card).

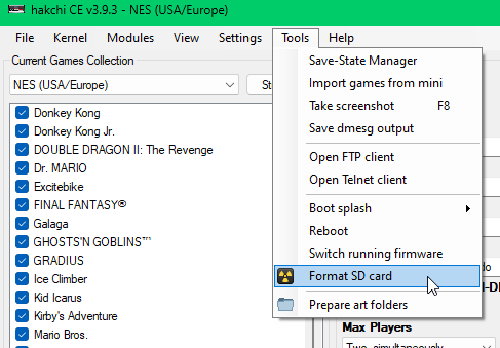

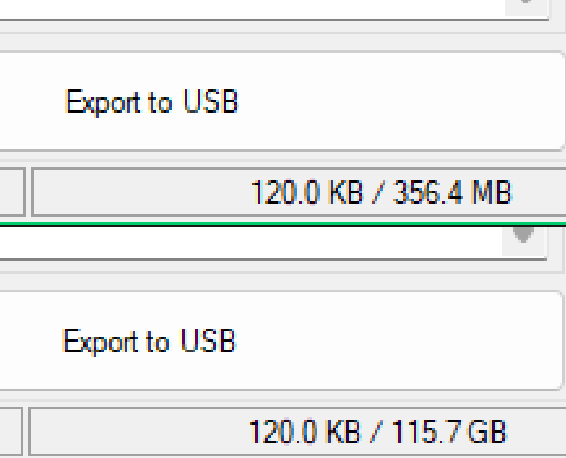

6. - On Hakchi2 CE, select Tools > Format SD. Follow the on-screen prompts. Your mini will reboot and show your newly alloted storage if everything went well.
   (If at this point you get an error from Hakchi saying no SD card is inserted, then you didn't use enough heat on the soldering points. Go back and make sure you let the solder bond)
7. You can now close up your Mini Console as you can sync directly from here without needing to remove the MicroSD card from your mini again.
